Product name： Square rectangular pipe with straight seam submerged arc welding
Category
Category：Product Center
Retail price
0.0
元
Market price
0.0
元
Number of views:
1039
Product serial number
Quantity
-
+
Stock:
Detailed introduction
Parameters

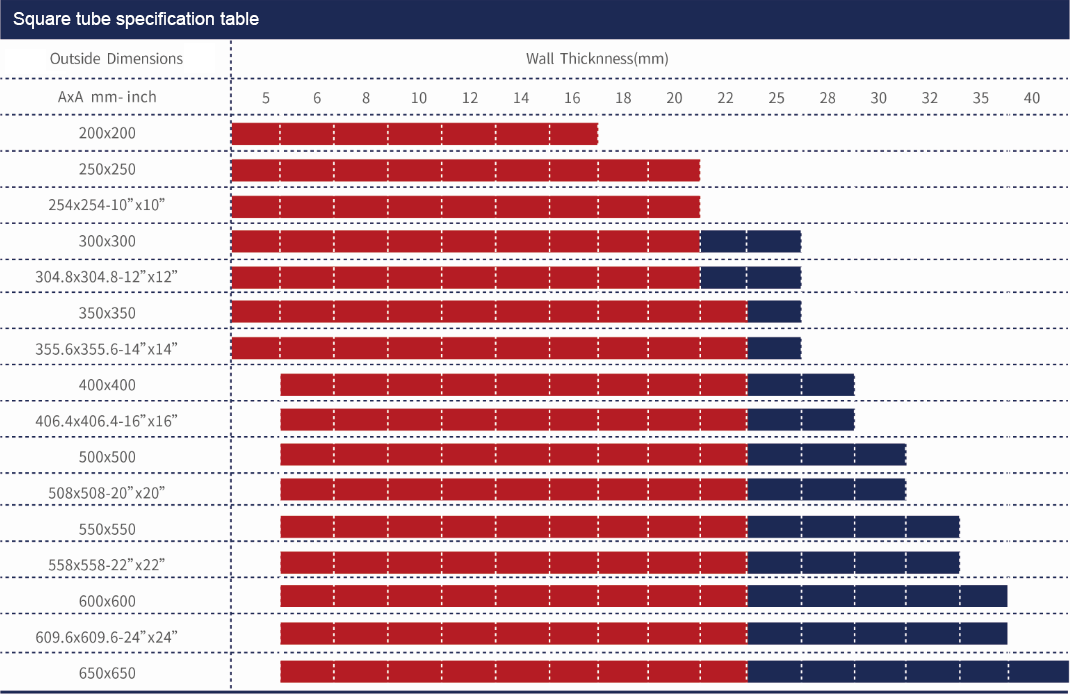

Through independent design and research and development, our company has the first large single slit square rectangular tube production line in China, which can produce 200*200-700*700 single slit rectangular welded square tube with a thickness of 5-22mm, and the maximum size of the rectangular pipe with double weld seam welding square can reach 1400*1400mm and the wall thickness is 40mm. The product is widely used in steel structure, bridge infrastructure, shipbuilding and other fields due to its high dimension and high accuracy.
Standard：YB/T4181-2008 , JIS G3466 , EN10219/EN10210 , JG/T178，GB/T6728，GB/T30063
Texture of material：Q23 5B/34 5B/345C/345D, Q390，Q460，CCS/GL/LR/DNV/ABS-AH32/36, SS400/490, S235/S355J0/J2H
| Product range | Minimum wall thickness | Maximum wall thickness |
| 200*200-1400*1400 | 5 | 40 |
